K01-0604D2P0K

Category Tag

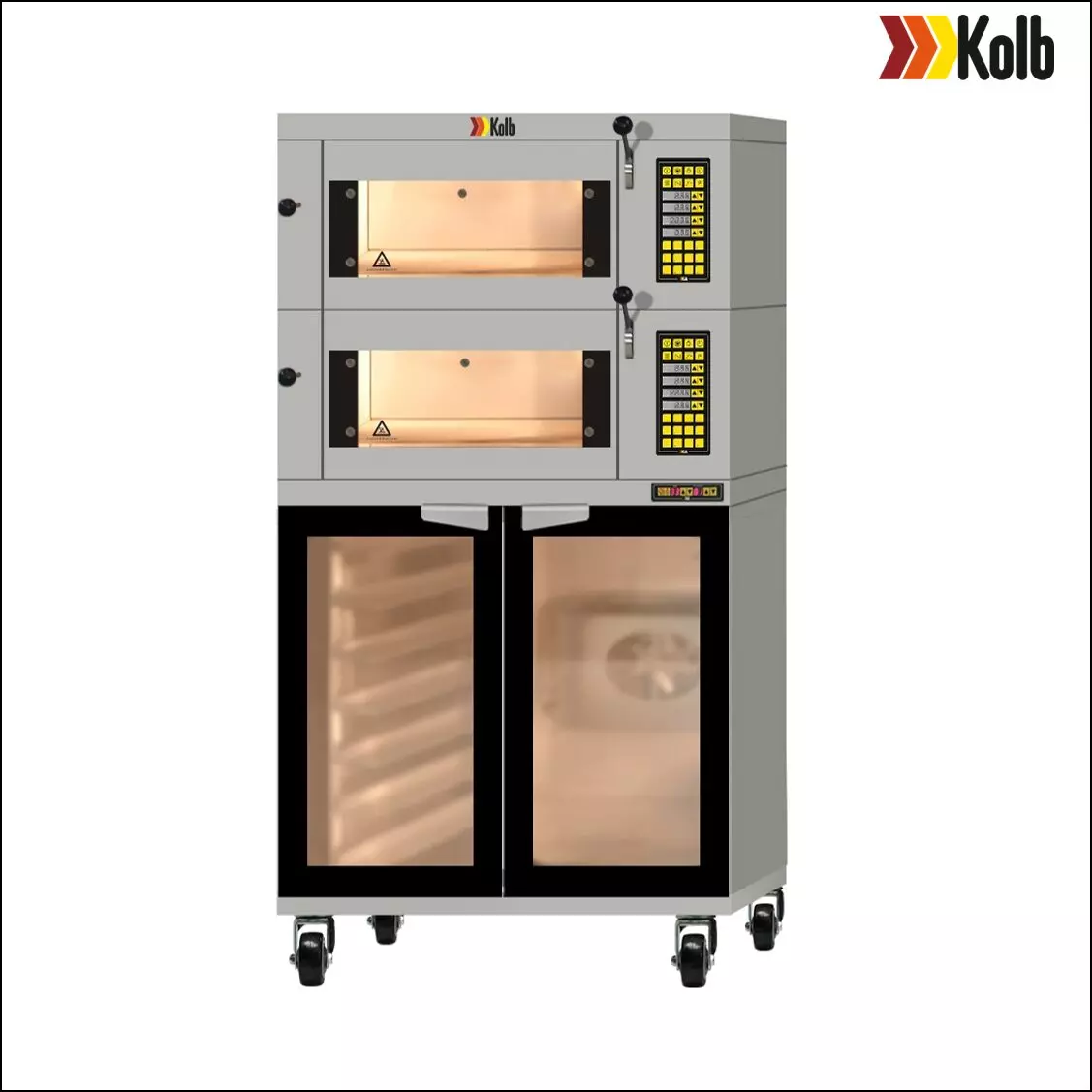

Laguna 2 Deck Oven with Under Proofer. Suitable for show kitchen, coffee shop, and bakery. High energy eficiency feature, smart design, strong built and reliable. It comes with 2 chambers that can fit 2 trays of 600x400mm for each chamber, and 24 trays for proofer.

Request for quote

GET Quote

For additional information, please see spec sheet.

Chat With Us:
Description

Product Features:
– Independent and strong steam heating system
– Heat protected large glass door for easy observation and cleaning
– No need for baking tray rotation to get consistency result

Options:
– Deck height can be from 170mm OR 220mm
– Steam Deck, Stone Base, Iron Rack Base, or  Steam Hood
– Nos. of decks : 1- 5decks
– Control System for your choice: 2 in 1 PCB  (30 programs), or Touch screen PCB (240 programs) with standby mode
– Proofer underneath

Warranty:
1 year on parts and labour under manufacturing defect from date of purchase (except for wear and tear parts) Transportation charge as per company’s standard.

Product Specifications

NO. OF BAKING CHAMBER
BAKING CHAMBER DIMENSIONS (WxDxH)mm
OUTSIDE DIMENSIONS (WxDxH)mm
BAKING TRAY CAPACITY (600X400)mm
POWER SUPPLY WITHOUT STEAM kW
POWER SUPPLY WITH STEAM kW
APPROX. WEIGHT WITH STONE BASE (kg)
UNDER FRAME TRAY SUPPORT
HEIGHT OF UNDER FRAME TRAY SUPPORT mm
TRAY CAPACITY (600X400mm)
POWER SUPPLY kW
APPROX. WEIGHT (kg)
TOTAL HEIGHT OUTSIDE DIMENSIONS (WxDxH)mm
2
630 x 920 x 220
962 x 1454 x 835
4 pieces / 2 trays per deck (not include)
9.8 kW
13.8 kW
428
950
24
1.35
145
962 x 1454 x 1785
